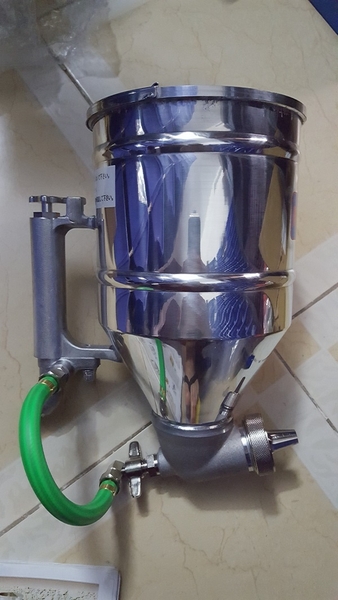

Súng phun tường Meiiji Nhật Bản SGA-2

GNY: 2.350.000 Đ 2.500.000 Đ

Thông tin sản phẩm:

Model: SGA-2 . Chất liệu cốc chứa xi măng bột bả: thép Hãng sản xuất : Meiji Nơi sản xuất : Nhật Bản Ứng dụng: Phun tạo sần trên tường. Súng có thể phun ra 3 kiểu sần mịn thô khác nhau tùy thuộc vào lỗ phun. SGA-2 SGS-2 AGA KG KGA LGA MB-2 MB-3Y HS2A-G HS2YA-G F210Z-PZ (with 10ZP paint cup) F210Z-P (with 10ZP paint cup) WG WGW MW-A MW-B ※10ZP paint cup should be orderd separately. Wide selection of models In addition to models specially designed for use with tile, resin, mortar, stucco, micro-fine stucco, etc., our extensive product line-up also includes multi-purpose spray guns and other models for every type of application. Lightweight, excellent balance Optimum efficiency design makes these spray guns extremely light-weight and the excellent...

Model: SGA-2 .

Chất liệu cốc chứa xi măng bột bả: thép

Hãng sản xuất : Meiji

Nơi sản xuất : Nhật Bản

Ứng dụng: Phun tạo sần trên tường. Súng có thể phun ra 3 kiểu sần mịn thô khác nhau tùy thuộc vào lỗ phun.

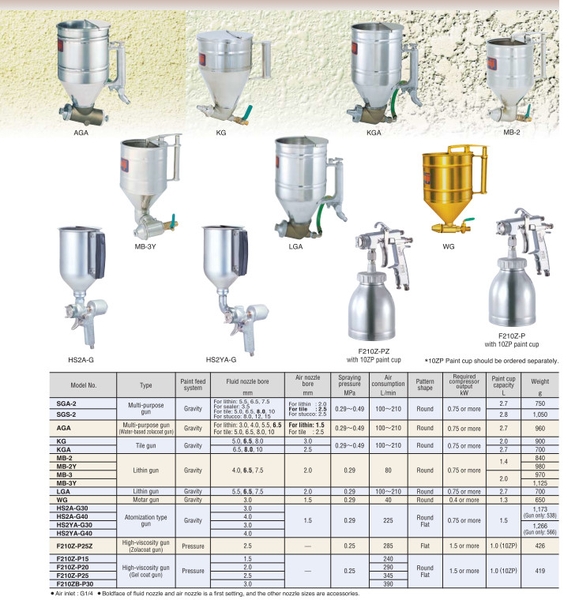

SGA-2	SGS-2	AGA


KG	KGA	LGA


MB-2	MB-3Y	HS2A-G


HS2YA-G	F210Z-PZ (with 10ZP paint cup)	F210Z-P (with 10ZP paint cup)


WG	WGW


MW-A	MW-B
※10ZP paint cup should be orderd separately.

	Wide selection of models
	In addition to models specially designed for use with tile, resin, mortar, stucco, micro-fine stucco, etc., our extensive product line-up also includes multi-purpose spray guns and other models for every type of application.
	Lightweight, excellent balance
	Optimum efficiency design makes these spray guns extremely light-weight and the excellent handling balance minimizes operator fatigue during extended use.
	One-touch operation (Models AGA, HS2A and HS2YA)
	A special patented mechanism in which a hollow needle valve is automatically moved back and forth by air pressure makes "one-touch" operation possible for improved work efficiency.
	Thoughtfully designed to make work easier (Models SGS, AGA, KGA and LGA)
	The large cup capacity and good paint flow make working with these spray gun easier. An air regulating valve eliminates uneven spraying to ensure consistently reliable painting , and a valve button locking system enables continuous operation.
	How to Select a Spray Gun for Architectural Painting
	Determine the spray gun and paint nozzle bore to be used according to the name of the paint, the paint viscosity, the size of the aggregate, and the pattern. Also refer to the standard specifications listed in the paint catalog with regard to the spray gun name, nozzle bore, spraying pressure, etc.
	Types of Aggregate
	Quartz sand, white marble, sand, clay-based crushed grains 50 mesh = 279μm Reference sizes : Table salt = 100μm, 　　　　　　　　　　　　Strand of human hair = 70μm

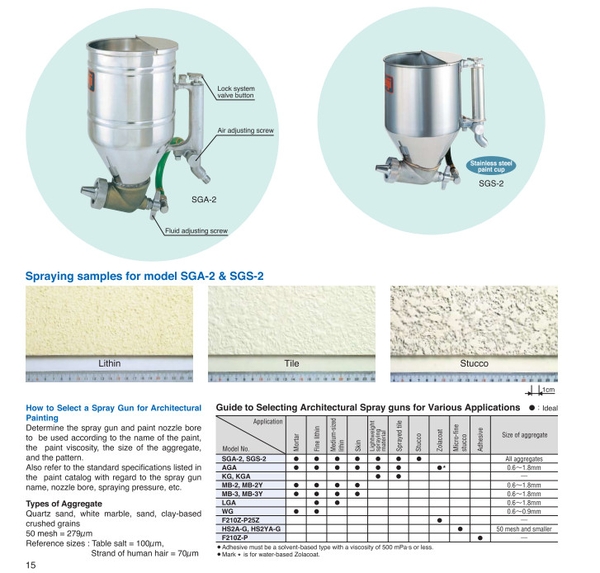

Spraying samples for model SGA-2 & SGS-2

▼Guide to Selecting Architectural Spray guns for Various Applications
Model No.	SGA-2 SGS-2	AGA	KG KGA	MB-2 MB-2Y	MB-3 MB-3Y	LGA	WG
Mortar
Fine lithin
Medium-sized lithin
Skin
Lightweight spraying material
Sprayied tile
Stucco
Size of aggregates	All aggregates	0.6-1.8mm	-	0.9-1.8mm	0.9-1.8mm	0.9-1.8mm	0.6-0.9mm

Model No.	F210Z-P25Z	HS2-G HS2Y-G	F210Z-P
Zloacoat			*
micro-fine stucco
Adhesive
Size of aggregates	-	50 mesh and smaller	-
●Adhesive must be a solvent-based type with a viscosity of 500 MPa・s or less ●Mark * is for water-based Zolacoat. ●Ideal :

Model No.		SGA-2<SGS-2>	AGA	KG<KGA>
Type		Multi-purpose gun		Tile gun
Paint feed system		Gravity

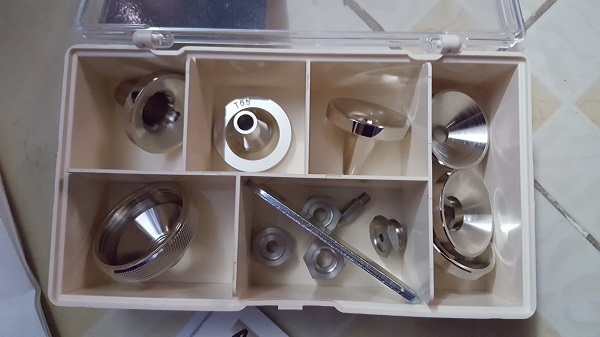

Nozzle bore	mm	For lithin:3.5, 5.5, 6.5, 7.5 For tile:5.0, 6.5, 8.0, 10 For stucco:8.0, 12, 15	For lithin:3.0, 4.0, 5.5, 6.5 For tile:5.0, 6.5, 8.0, 10	5.0, 6.5, 8.0 <6.5, 8.0, 10>
Air nozzle bore	mm	For lithin:2.0 For tile and stuco:2.5	For lithin:1.5 For tile:2.5	3.0<2.5>
Spraying pressure	MPa	0.29-0.49
Air con-sumption	L/min	100-210
Spray pattern		Round
Required compressor output	kW	0.75 or more
Paint Cup Capacity	L	2.7	2.8	2.7
Weight	g	750<1050>	960	900<700>
Measurement	M³	0.07/4PC

Model No.		MB-2<MB-2Y> (MB-3)[MB-3Y]	LGA	WG
Type		Lithin gun		Motar gun
Paint feed system		Gravity
Nozzle bore	mm	4.0, 6.5, 7.5	5.5, 6.5, 7.5	3.0
Air nozzle bore	mm	2.0		1.5
Spraying pressure	MPa	0.29
Air con-sumption	L/min	80	100-210	40
Spray pattern		Round
Required compressor output	kW	0.75 or more		0.4 or more
Paint Cup Capacity	L	1.4<1.4>(2.0)[2.0]	2.7	1.3
Weight	g	840<980> (970)[1125]	700	650
Measurement	M³	0.07/4PC

Model No.		F210Z-P25Z	HS2-G30 <HS2-G40> (HS2Y-G30) [HS2Y-G40]	F210Z-P15 <F210Z-P20> (F210Z-P25) [F210ZB-P30]
Type		Zolacoat gun	Multi-Purpose gun	High-viscosity gun
Paint feed system		Pressure	Gravity	Pressure
Nozzle bore	mm	2.5	3.0<4.0>(3.0)[4.0]	1.5<2.0>(2.5)[3.0]
Air nozzle bore	mm	-	1.5	-
Spraying pressure	MPa	0.25	0.29	0.25
Air con-sumption	L/min	285	225	240<290> (345)[390]
Spray pattern		Flat	Round Flat
Required compressor output	kW	1.5 or more	0.75 or more	1.5 or more
Paint cup Capacity	L	1.0(10ZP)	1.5	1.0(10ZP)
Weight	g	426	1173 Gun Only:538 <1173 Gun Only:538> (1266 Gun Only:566)[1266 Gun Only:566]	419
Measurement	m³	0.07/15PC	0.07/4PC	0.07/15PC

▼Twin Nozzle Guns
Model No.		WGW	MW-A	MW-B
Type		Twin nozzle gun
Paint feed system		Gravity
Nozzle bore	mm	4.0	8.0
Air nozzle bore	mm	1.5	2.5
Spraying pressure	MPa	0.2-0.29	0.29-0.49
Air con-sumption	L/min	80-120	180-350
Spray pattern		Round
Required compressor output	kW	0.4 or more	2.2 or more
Paint cup Capacity	L	0.8×2	2.0×2
Weight	g	850	2000	2100
Measurement	m³	0.07/4PC	0.05/2PC
