Súng phun tường Meiiji Nhật Bản AGA

GNY: 2.350.000 Đ 2.500.000 Đ

Model: AGA Hãng sản xuất : Meiji Nơi sản xuất : Nhật Bản Ứng dụng: Phun tạo sần trên tường. Súng có thể phun ra 3 kiểu sần mịn thô khác nhau tùy thuộc vào lỗ phun.   SGA-2 SGS-2 AGA KG KGA LGA MB-2 MB-3Y HS2A-G HS2YA-G F210Z-PZ (with 10ZP paint cup) F210Z-P (with 10ZP paint cup) WG WGW MW-A MW-B ※10ZP paint cup should be orderd separately. Wide selection of models   In addition to models specially designed for use with tile, resin, mortar, stucco, micro-fine stucco, etc., our extensive product line-up also includes multi-purpose spray guns and other models for every type of application. Lightweight, excellent balance   Optimum efficiency design makes these spray guns extremely light-weight and the excellent handling balance minimizes operator fatigue during extended use. One-touch operation...

Mua ngay

Model: AGA

Hãng sản xuất : Meiji

Nơi sản xuất : Nhật Bản

Ứng dụng: Phun tạo sần trên tường. Súng có thể phun ra 3 kiểu sần mịn thô khác nhau tùy thuộc vào lỗ phun.


SGA-2 SGS-2 AGA
SGA-2 SGS-2 AGA
KG KGA LGA
KG KGA LGA
MB-2 MB-3Y HS2A-G
MB-2 MB-3Y HS2A-G
HS2YA-G F210Z-PZ(with paint cup) F210Z-P(with 10ZP paint cup
HS2YA-G F210Z-PZ
(with 10ZP
paint cup)
F210Z-P
(with 10ZP
paint cup)
WG WGW
WG WGW
MW-A MW-B
MW-A MW-B
※10ZP paint cup should be orderd separately.


Wide selection of models
  In addition to models specially designed for use with tile, resin, mortar, stucco, micro-fine stucco, etc., our extensive product line-up also includes multi-purpose spray guns and other models for every type of application.
Lightweight, excellent balance
  Optimum efficiency design makes these spray guns extremely light-weight and
the excellent handling balance minimizes operator fatigue during extended use.
One-touch operation (Models AGA, HS2A and HS2YA)
  A special patented mechanism in which a hollow needle valve is automatically moved
back and forth by air pressure makes "one-touch" operation possible for improved
work efficiency.
Thoughtfully designed to make work easier
(Models SGS, AGA, KGA and LGA)
  The large cup capacity and good paint flow make working with these spray gun easier.
An air regulating valve eliminates uneven spraying to ensure consistently reliable
painting , and a valve button locking system enables continuous operation.
How to Select a Spray Gun for Architectural Painting
  Determine the spray gun and paint nozzle bore to be used according to the name of the
paint, the paint viscosity, the size of the aggregate, and the pattern.
Also refer to the standard specifications listed in the paint catalog with regard to the
spray gun name, nozzle bore, spraying pressure, etc.
Types of Aggregate
  Quartz sand, white marble, sand, clay-based crushed grains
50 mesh = 279μm
Reference sizes : Table salt = 100μm,
            Strand of human hair = 70μm

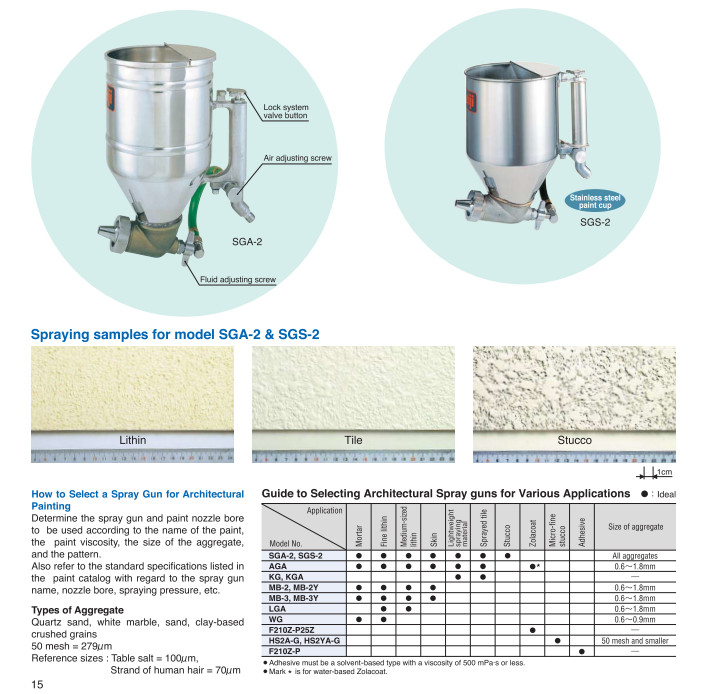

 Spraying samples for model SGA-2 & SGS-2



▼Guide to Selecting Architectural Spray guns for Various Applications
Model No. SGA-2
SGS-2
AGA KG
KGA
MB-2
MB-2Y
MB-3
MB-3Y
LGA WG
Mortar
Fine lithin
Medium-sized lithin
Skin
Lightweight spraying material
Sprayied tile
Stucco
Size of aggregates All aggregates 0.6-1.8mm - 0.9-1.8mm 0.9-1.8mm 0.9-1.8mm 0.6-0.9mm



Model No. F210Z-P25Z HS2-G
HS2Y-G
F210Z-P
Zloacoat   *
micro-fine stucco
Adhesive
Size of aggregates - 50 mesh and smaller -
●Adhesive must be a solvent-based type with a viscosity of 500 MPa・s or less
●Mark * is for water-based Zolacoat.
●Ideal :

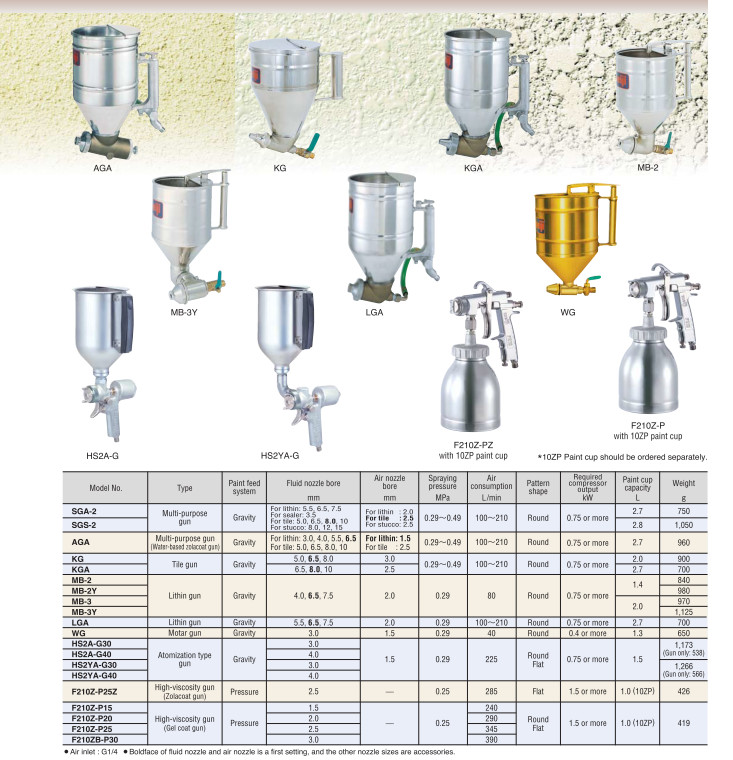

Model No. SGA-2 AGA KG
Type Multi-purpose gun Tile gun
Paint feed system Gravity
Nozzle bore mm For
lithin:3.5, 5.5, 6.5, 7.5
For
tile:5.0, 6.5, 8.0, 10
For
stucco:8.0, 12, 15
For
lithin:3.0, 4.0, 5.5, 6.5
For
tile:5.0, 6.5, 8.0, 10
5.0, 6.5, 8.0
<6.5, 8.0, 10>
Air nozzle bore mm For lithin:2.0
For tile and stuco:2.5
For lithin:1.5
For tile:2.5
3.0<2.5>
Spraying pressure MPa 0.29-0.49
Air con-sumption L/min 100-210
Spray pattern Round
Required compressor output kW 0.75 or more
Paint Cup Capacity L 2.7 2.8 2.7
Weight g 750<1050> 960 900<700>
Measurement M3 0.07/4PC



Model No. MB-2
(MB-3)[MB-3Y]
LGA WG
Type Lithin gun Motar gun
Paint feed system Gravity
Nozzle bore mm 4.0, 6.5, 7.5 5.5, 6.5, 7.5 3.0
Air nozzle bore mm 2.0 1.5
Spraying pressure MPa 0.29
Air con-sumption L/min 80 100-210 40
Spray pattern Round
Required compressor output kW 0.75 or more 0.4 or more
Paint Cup Capacity L 1.4<1.4>(2.0)[2.0] 2.7 1.3
Weight g 840<980>
(970)[1125]
700 650
Measurement M3 0.07/4PC



Model No. F210Z-P25Z HS2-G30

(HS2Y-G30)
[HS2Y-G40]
F210Z-P15

(F210Z-P25)
[F210ZB-P30]
Type Zolacoat gun Multi-Purpose gun High-viscosity gun
Paint feed system Pressure Gravity Pressure
Nozzle bore mm 2.5 3.0<4.0>(3.0)[4.0] 1.5<2.0>(2.5)[3.0]
Air nozzle bore mm - 1.5 -
Spraying pressure MPa 0.25 0.29 0.25
Air con-sumption L/min 285 225 240<290>
(345)[390]
Spray pattern Flat Round Flat
Required compressor output kW 1.5 or more 0.75 or more 1.5 or more
Paint cup Capacity L 1.0(10ZP) 1.5 1.0(10ZP)
Weight g 426 1173 Gun Only:538
<1173 Gun Only:538>
(1266 Gun Only:566)[1266 Gun Only:566]
419
Measurement m3 0.07/15PC 0.07/4PC 0.07/15PC



▼Twin Nozzle Guns
Model No. WGW MW-A MW-B
Type Twin nozzle gun
Paint feed system Gravity
Nozzle bore mm 4.0 8.0
Air nozzle bore mm 1.5 2.5
Spraying pressure MPa 0.2-0.29 0.29-0.49
Air con-sumption L/min 80-120 180-350
Spray pattern Round
Required compressor output kW 0.4 or more 2.2 or more
Paint cup Capacity L 0.8×2 2.0×2
Weight g 850 2000 2100
Measurement m3 0.07/4PC 0.05/2PC
